66-001 Specifications and performance documentation
*Non-inverting design
*Unbalanced inputs / unbalanced outputs
*Input impedance = 100K
*Fully point to point construction with high temp wiring and silver solder
*Hand-matched high quality parts used throughout
*FET / Triode cascode phono stage input topology for high gain and low noise
*MM RIAA passive equalized phono input (47K input impedance, 15pf capacitance)
*RIAA stage gain = 45dB
-S/N ratio: 76dB reference -40dB in @ 1kHz, +5dB record out, no weighting
*Line stage gain = 14dB
-S/N ratio: 100dB reference 1V p-p out, no weighting
*Tube compliment:  2 ea. 12AU7A - phono stage, 2 ea. ECC99 - line stage
*High quality Alps Blue volume pot
*Balance control out of direct signal path
*Volume and balance controls nested between amplifier stages providing constant load on phono stage and line inputs for consistent frequency response
*Mono (true summing) and Mute switches for added convience
*5 line level inputs - input impedance 100K ohm
*Record output jacks - output impedance ~ 5K ohm
*Dual main output jacks
*Transformer coupled output - headphones and main outs
*2 ohm output impedance - will drive 8 ohm speaker to 1 watt!
*Fully regulated external solid state power supply for low noise
*30lb shipping weight
Measurement data: Click to enlarge
Square wave response - line stage left channel; 1khz @ 1.5 Vp-p
Square wave response, line stage right channel; 1khz @ 1.5 Vp-p
Square wave response - line stage left channel; 10khz @ 1.5 Vp-p
Square wave response - line stage right channel; 10khz @ 1.5 Vp-p
Square wave response via inverse network - RIAA left channel; 1khz @ 1.5 Vp-p measured at record output
Square wave response via inverse network - RIAA right channel; 1khz @ 1.5 Vp-p measured at record output
Square wave response via inverse network - RIAA left channel; 10khz @ 1.5 Vp-p measured at record output
Square wave response via inverse network - RIAA right channel; 10khz @ 1.5 Vp-p measured at record output
RIAA - Left Channel Freq. Resp.
RIAA - Right Channel Freq. Resp.
RIAA Left + Right Channel Freq. Resp. Overlay
Line In - Left Channel Freq. Resp.
Line In - Right Channel Freq. Resp.
Line In Left + Right Channel Freq. Resp. Overlay
Line In Left -10 in, -16 out 32768-point spectrum using Hann window and 8 averages Input RMS -16.0dB FS Distortion at 1,000.0Hz, -16.0dB FS based on 8 harmonics: THD 0.0194% THD+N 0.0275% 2nd harmonic 0.0070% 3rd harmonic 0.0177% 4th harmonic 0.0027% 5th harmonic 0.0014% 6th harmonic 0.0018% 7th har
Line In Left -10 in, -10 out 32768-point spectrum using Hann window and 8 averages Input RMS -10.0dB FS Distortion at 1,000.0Hz, -10.0dB FS based on 8 harmonics: THD 0.1660% THD+N 0.1663% 2nd harmonic 0.1649% 3rd harmonic 0.0190% 4th harmonic 0.0014% 5th harmonic 0.0006% 6th harmonic 0.0009% 7th har
Line In Left -10 in, 0 out 32768-point spectrum using Hann window and 8 averages Input RMS -6.4dB FS Distortion at 1,000.0Hz, -6.4dB FS based on 8 harmonics: THD 0.6684% THD+N 0.6685% 2nd harmonic 0.6624% 3rd harmonic 0.0885% 4th harmonic 0.0126% 5th harmonic 0.0010% 6th harmonic 0.0009% 7th harmoni
Line In Right -10 in, -16 out 32768-point spectrum using Hann window and 8 averages Input RMS -15.9dB FS Distortion at 1,000.0Hz, -15.9dB FS based on 8 harmonics: THD 0.1738% THD+N 0.1749% 2nd harmonic 0.1717% 3rd harmonic 0.0179% 4th harmonic 0.0187% 5th harmonic 0.0013% 6th harmonic 0.0050% 7th ha
Line In Right -10 in, -10 out 32768-point spectrum using Hann window and 8 averages Input RMS -10.0dB FS Distortion at 1,000.0Hz, -10.0dB FS based on 8 harmonics: THD 0.0358% THD+N 0.0382% 2nd harmonic 0.0168% 3rd harmonic 0.0150% 4th harmonic 0.0257% 5th harmonic 0.0048% 6th harmonic 0.0084% 7th ha
Line In Right -10 in, 0 out 32768-point spectrum using Hann window and 8 averages Input RMS -6.4dB FS Distortion at 1,000.0Hz, -6.4dB FS based on 8 harmonics: THD 0.4803% THD+N 0.4805% 2nd harmonic 0.4771% 3rd harmonic 0.0356% 4th harmonic 0.0313% 5th harmonic 0.0200% 6th harmonic 0.0146% 7th harmon
RIAA Left -50 in 32768-point spectrum using Hann window and 8 averages Input RMS -8.8dB FS Distortion at 1,000.0Hz, -8.8dB FS based on 8 harmonics: THD 0.0634% THD+N 0.4007% 2nd harmonic 0.0633% 3rd harmonic 0.0030% 4th harmonic 0.0013% 5th harmonic 0.0002% 6th harmonic 0.0006% 7th harmonic 0.0003%

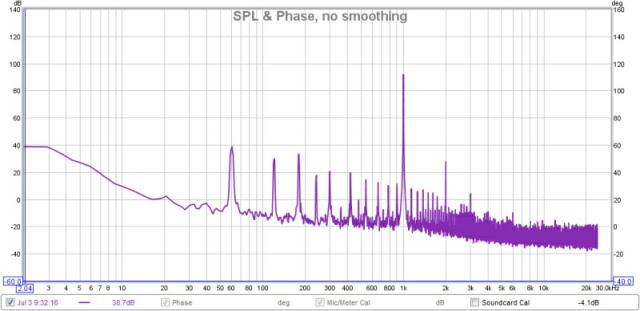

RIAA Right -50 in 32768-point spectrum using Hann window and 8 averages Input RMS -8.5dB FS Distortion at 1,000.0Hz, -8.5dB FS based on 8 harmonics: THD 0.0613% THD+N 0.3566% 2nd harmonic 0.0611% 3rd harmonic 0.0038% 4th harmonic 0.0009% 5th harmonic 0.0004% 6th harmonic 0.0008% 7th harmonic 0.0003%
Square wave response
Frequency response
Distortion spectrum
